A Series

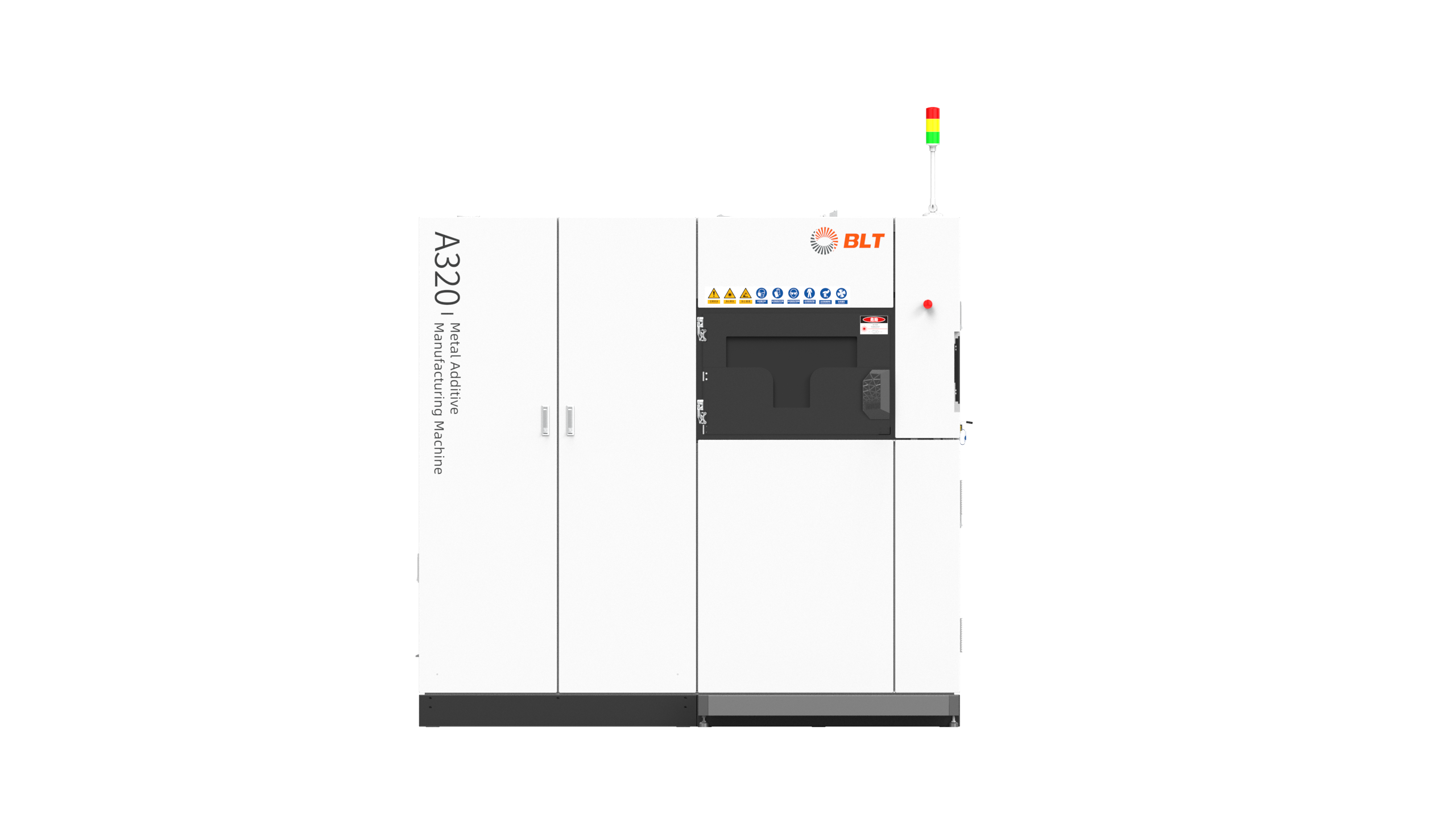

BLT-A300/A320

Continuous and Economic Production

  • Supporting Materials

    Titanium Alloy, Aluminum Alloy, Superalloy, Cobalt-chromium Alloy, Stainless Steel, High-strength Steel, Tool Steel, Copper Alloy

  • Build Dimension(1)

    250mm×250mm×300mm(W × D × H)

  • Laser Power

    500W; 500W×2

  • Building Speed(2)

    25cm³/h；50cm³/h

Application Fields

  • Mold

Download to see more details Inquiry
(1)Excluding substrate thickness.
(2)Dependent on part geometry, material and parameter set used.
(3)The machine dimensions exclude the length of the three-color indicator light; the length of the indicator shall be noted separately. The external dimensions provided are theoretical values; actual machine dimensions are subject to configuration and are subject to on-site installation.
*The displayed products are provided for reference purposes only.
* The actual models available may vary according to the product listings in each specific region.

Advantages

  • Variable Speed Adaptive Powder Spreading

    Intelligent powder saving & printing efficiency UPPING

  • Powder-worker Separated in the Whole Process

    Equipped with industrial glove box
    Guarantee personnel occupational health

  • Saving Powder and Gas More Economical

    Significantly lower operating costs

  • Short-term&Long-life Filtration System

    Compatible with multiple application scenarios
    Guarantee safety and convenience

  • BLT-MES System Upgraded Available

    Centralized management Intelligent interconnection

  • Automatic Grafting Upgraded Available

    Full substrate efficient processing Guarantee high precision

Related Cases

1/1
    • MaterialTool Steel
    • Size250mm×250mm×100mm (Full Substrate)
    • Weight6kg
    • Time10h

    Full Substrate Heating Nozzle

    • MaterialStainless Steel
    • Size260mm×260mm×100mm (Full Substrate)
    • Time17h

    Full Substrate Tire Mold Insert

    • MaterialTitanium Alloy
    • Size250x250x14.5mm (Full Substrate)
    • Weight0.7kg
    • Time70h

    Full Substrate Spinal Fusion Apparatus(Exhibit)

    • MaterialTitanium Alloy
    • Size250mm×250mm×290mm (Full Chamber, 13 layer)
    • Weight0.22kg (Single Layer)
    • Time15h (Single Layer)

    Full Substrate Acetabular Cup （Exhibit）

Intelligent Modules Help You
Achieve More

Standard Functions

  • Diagnosis Fault-grading
  • Real-time Status Monitoring
  • Process Data Traceability

Optional Functions

  • Automatic Grafting
  • Recoating Detection
  • Video Monitoring
  • BLT-MES System
  • BLT-MCS connect
  • Smaller Research Platform

Powder Circulation System Enhances Efficiency

Related Videos

1/6

  • Exclusive Metal 3D Machine for Mold Industry BLT -A300/A320

    Standard Configuration: Self-diagnosis Fault-grading/Real-time Monitoring the Printing Process /Full Printing Process Traceability
    Optional Configuration: Powdering Quality Control Module/Automatic Grafting/Permanent Filtration System /BLT-MES System
